12 Volt Compressor Pressure Switch Replacement

Tools and Materials Needed

solinst 12 volt compressor pressure switch

Pressure Switch

  1. Pressure Switch for the 12V Compressor (Spare) (#113545)
  2. Two Adjustable Wrenches

Note:
If your 12V Compressor was sold before September 2020, you will also need to replace the Pressure Relief Valve (#116690). If you are using with a 125 psi 464 Pump Control Unit sold before September 2020, you will also need to replace the Pressure Relief Valve (#116690) on the 464.



Instructions

CAUTION:

Ensure the power supply is disconnected from the 12V Compressor and the pressure has been fully vented from the tank.



  1. Pull to remove the two leads from the old pressure switch on the 12V Compressor.

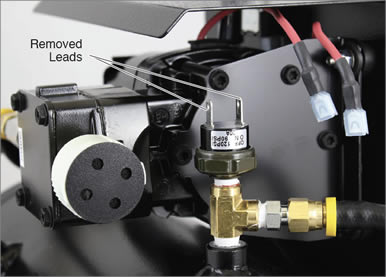

    2. remove the two leads from the old pressure switch on the 12v compressor



  2. Use the two wrenches to unscrew and remove the old pressure switch from the brass fitting on the 12V Compressor. Use one wrench to stalize the brass fitting, and the other to unscrew the pressure switch (see below).

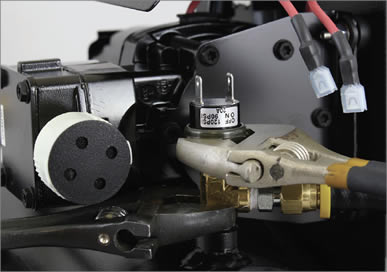

    3. stabilize the brass fitting on solinst 12 volt compressor to unscrew pressure switch



    solinst 12 volt compressor pressure switch



  3. Remove the two covers from the connections on the new pressure switch.
  4. Screw the new pressure switch into the brass fitting and tighten using the two wrenches.
  5. Connect the two leads to the new pressure switch (this switch has no polarity, so it does not matter which lead is connected to which terminal).

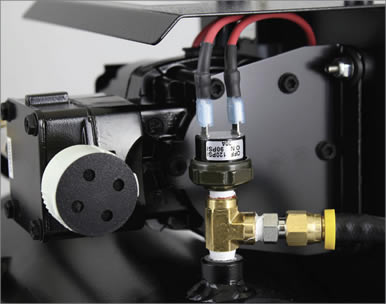

    6. connect the two leads to solinst 12 volt compressor pressure switch



    Note:

    If you are replacing the Pressure Relief Valve, simply unscrew the old one and replace it with the new one.

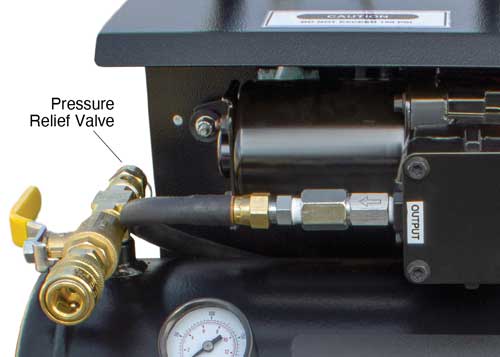

    solinst 12v compressor presure relief valve



  6. Test the Compressor (see separate operating instructions, if required). The 12V Compressor should turn off at 150 psi tank pressure, and on at 100 psi.
