Water Level Meter

Level Measurement Devices are accurately marked and provide manual measurements of:

  • Water levels in wells and narrow applications
  • Oil/water interface and thickness
  • Temperature and conductivity
  • Well casing depth
  • Total well depth
solinst flat tape water level meters

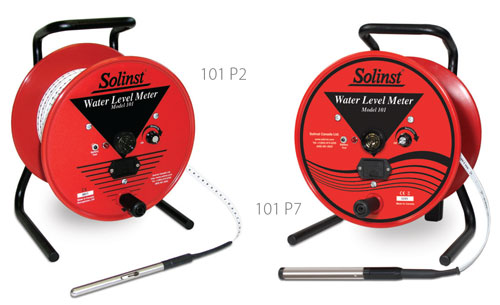

solinst 101 p7 and 101 p2 water level meter probes

The 101 Water Level Meters are very sturdy and give easy-to-read, consistently accurate water level measurements in wells, tanks, and boreholes. The flat tape is permanently marked each millimeter or every 1/100 ft.

There are two versions to choose from. The Model 101 P7 Water Level Meter features a pressure-proof probe and laser marked flat tape. The Model 101 P2 Water Level Meter features an easy-torepair probe and heat embossed polyethylene flat tape.

Each well balanced reel has a carrying handle, an easy-access battery drawer, and an excellent brake and tape guide. A 9V battery powers the buzzer and light, which activate when static water is reached.

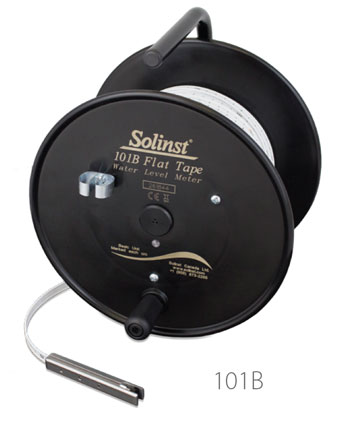

solinst 101b water level meter



The Model 101B Water Level Meter is a basic unit that features a durable, leakproof 1/2” (12 mm) diameter P1 Probe, and polyethylene flat tape heat embossed in centimeter increments. Length options are 30 m, 60 m, and 100 m.

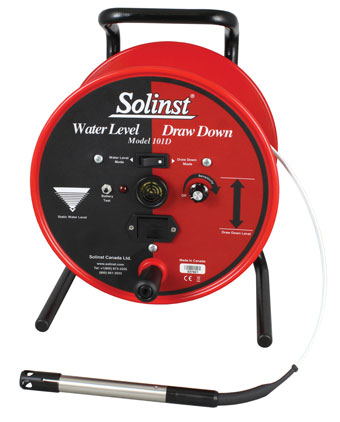

solinst 101d water level drawdown meter

The Model 101D Water Level DrawDown Meter shares the same qualities as the 101 P7 Water Level Meter, with the added feature of a drawdown mode. One simple toggle switches between static water level and drawdown measurements. The drawdown function is used to monitor falling hydraulic head during low flow sampling, well development, dewatering, pumping and other aquifer/well tests.
