Versatile Submersible Water Level Transmitter
- Excellent for measuring hydrostatic liquid levels, long-term, in industrial, municipal and environmental applications
- Program for MODBUS, SDI-12, or 4-20mA interchangeably
- Absolute and vented pressure sensor options

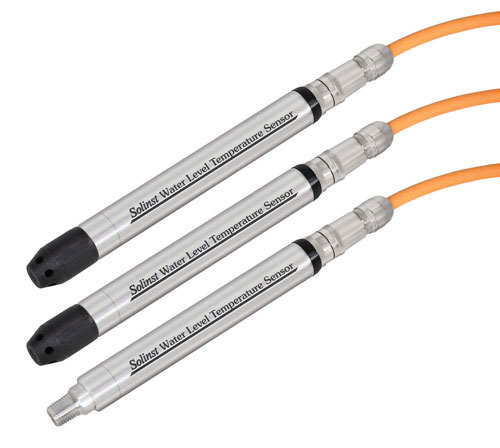

The 301 Water Level Temperature Sensor is a compact, all-in-one submersible hydrostatic level transmitter that provides fast and accurate water level and temperature readings for a wide variety of applications.
The 301 Water Level Temperature Sensor works with digital and analog protocols – MODBUS, SDI-12, and 4-20mA (add-on adaptor) – which makes them easy to integrate into your existing SCADA or PLC systems.
The durable water level pressure sensor provides 0.05% FS accuracy with automatically temperature compensated readings. There are six pressure ranges to choose from (5-200 m), with options for absolute and gauge (vented) pressure sensor setups.
The Sensor features a slim, robust 22 mm x 192 mm (7/8" x 7.55") 316L stainless steel housing with a removable nose cone for optional use of the 1/4" NPTM threaded connection.
Simple PC software utilities are used to set up the sensor for the different protocols, perform simple diagnostics, and update sensor firmware if required.
