Double Valve Pump

solinst groundwater samplers gas drive pumps water well sampling groundwater solinst double valve pump double valve pumps pneumatic groundwater sampling pumps image

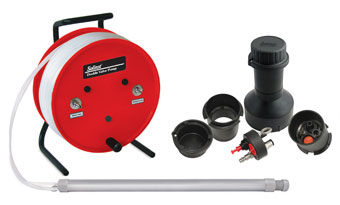

Portable reel units and dedicated wellheads are available
for Bladder Pumps and Double Valve Pumps.

The 408 Double Valve Pump (DVP) is a gas drive pump suitable for low flow and medium flow applications of almost any depth and narrow diameters. It is available in 316 stainless steel in 1.66” or 5/8” diameters (42 mm or 16 mm).

Compressed gas supplied from the Controller pushes down on the water column in the drive line, which is at static level, closing the check valve at the base of the pump, forcing water up the sample line. When operated properly, “drive gas” will never come in contact with the sample water, which produces high quality VOC samples.
