Monitoring Options

Drive-Point Piezometer Monitoring Options

The 615 Drive-Point Piezometer has a barbed fitting to attach 5/8" x 1/2" LDPE or Teflon tubing. These piezometers are suitable for water sampling using Solinst 429 Point-Source Bailers, Model 404 Inertial Pumps, or the Model 410 Peristaltic Pump. Water level measurements can be taken using the Model 102 or 102M Water Level Meters.

The 615N Drive-Point Piezometer does not have a tubing barb. The open 3/4" (20mm) piezometer pipe is ideal for water level measurements using the Model 102 or 102M Water Level Meters or Model 101 Water Level Meter, and provides more access to sample with Model 404 Inertial Pumps, or Model 429 Point-Source Bailers.

solinst drive point piezometers 615 drive point piezometers 615n drive point piezometers 615s drive point piezometers 615sn drive point piezometers 615c drive point piezometers image



The 615S Drive-Point Piezometer is a shielded version of the 615. It has the same monitoring options as the standard 615. The shield prevents the screen from smearing during installation in soft soils and clay.

The 615SN Drive-Point Peizometer is a shielded version of the 615N. It has the same monitoring options as the standard 615N. The shield prevents the screen from smearing during installation in soft soils and clay.

solinst drive point piezometers 615 drive point piezometers 615n drive point piezometers 615s drive point piezometers 615sn drive point piezometers 615c drive point piezometers image



The 615C comes with a compression fitting to attach 1/4" x 0.170" LDPE or Teflon tubing. The 615C is suitable for water and soil vapor sampling using the Solinst Model 410 Peristaltic Pump.

solinst drive point piezometers 615 drive point piezometers 615n drive point piezometers 615s drive point piezometers 615sn drive point piezometers 615c drive point piezometers image

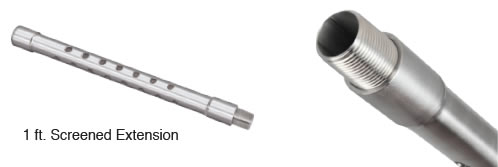

1 ft. Screened Extensions are an option for extending the screened length of the piezometer tip. Note: Available with or without a barbed fitting.

solinst drive point piezometers 1 ft. screened extensions



1" NPTF to 3/4" NPTM Reducer Coupling Sets (113436) and 1" BSPTF to 3/4" NPTM Reducer Couplings Sets (114259) are available for installing a Levelogger in a section of 1" extension pipe. See separate installation instructions.

solinst nptm reducer coupling for drive point piezometers allowing levelogger water level dataloggers to be installed
