Drive-Point Piezometer with Levelogger Installation

solinst drive point piezometer installation using manual slide hammer and 1 inch npt externsion pipe to accomodate levelogger dataloggers

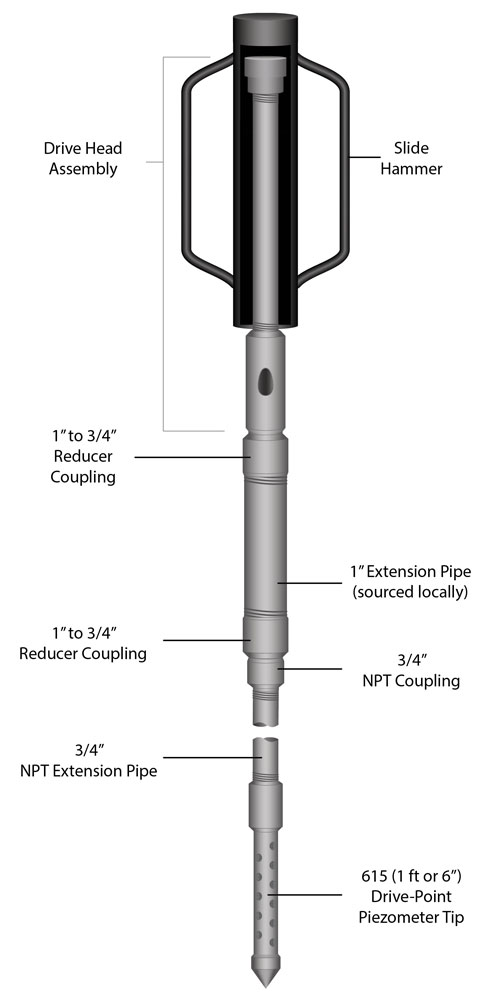

Typical Installation Using
Manual Slide Hammer

Operating Principles

To install a Solinst Levelogger within a Solinst Drive-Point Piezometer, a section of 1" NPT extension pipe is required to accommodate the 7/8" diameter Levelogger.

To minimize friction during installation with a manual slide hammer, the section of 1" pipe should be installed as close to ground surface as possible (i.e. install the Levelogger as shallow as possible, but deep enough so it remains submerged throughout the monitoring period).

Use 3/4" extensions and couplings to get the piezometer tip as deep as possible before requiring the 1" section. When installing the piezometer using a manual slide hammer, depth limitations will vary with soil conditions.



Component List

Note:

Never use the slide hammer with a Levelogger installed.



Installation

  1. Ensure that all components are clean prior to use.
  2. Note:

    The reducer coupling will not thread directly to a 615SN Shielded Drive-Point Piezometer. A 3/4" NPT extension pipe and coupling must first be connected.

  3. Follow the 615 Drive-Point Piezometer instructions to install the piezometer tip and 3/4" extension pipe section, until only about 6" (15 cm) of the extension pipe remains above ground.
  4. Thread on a 3/4" coupling. Use pipe wrenches to tighten.
  5. Thread one of the 1" to 3/4" reducer couplings into the 3/4" coupling and tighten.
  6. Thread a 1" NPT extension pipe into the reducer coupling and tighten it securely.
  7. Thread the second reducer coupling to the end of the 1" extension pipe.
  8. Thread the drive head assembly onto the reducer coupling.
  9. Slide the hammer over the drive head and operate the slide hammer to drive the device until only about 6" (15 cm) of the 1" extension pipe below the drive head assembly remains above the ground.
  10. Remove the hammer, the drive head assembly, and the reducer coupling.
  11. Thread a 1" coupling onto the 1" extension pipe, then the next extension pipe into the coupling. Tighten securely.
  12. Repeat steps 6 through 10 until the desired final depth is reached.
  13. Install the Levelogger. See the Levelogger Series User Guide for more information on Levelogger installation.
  14. Finish the installation by capping off at the top (you can temporarily use a reducer coupling and a 3/4" delrin cap (# 111148)).

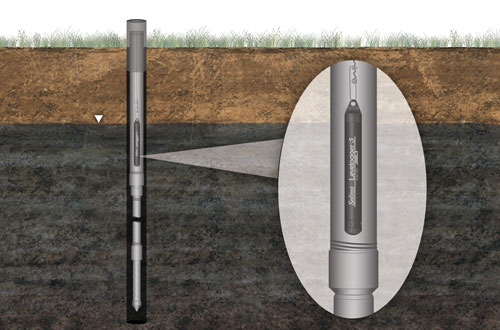

installing solinst levelogger inside drive point piezometer extension pipe just below lowest expected water level

Levelogger Installation Just Below Lowest Expected Water Level
