Well-mount Field Table Instructions

Deployment Instructions

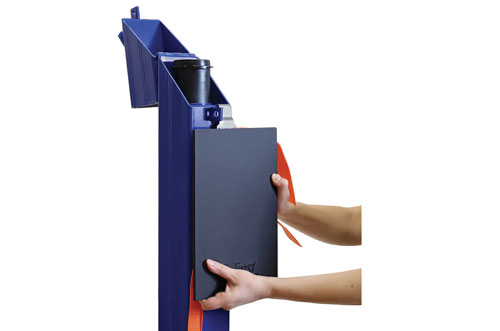

  1. Hook the stainless steel support bracket onto the top of the well casing/enclosure and rest the bracket against the side of the well/enclosure.
    2. solinst well mount field table hooked onto well enclosure

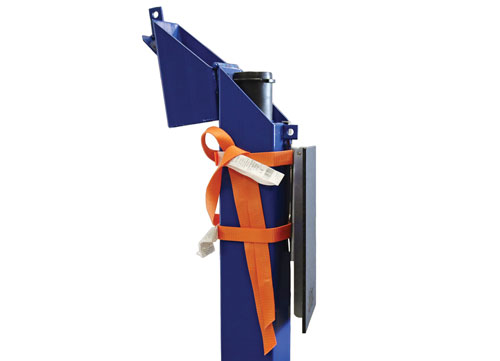

  2. Secure the Well-mount Field Table in place using the two cinch straps around the well casing/enclosure. Insert the end of the strap into the backside of the buckle and push it through the buckle lever. Pull the strap to tighten it.
    3. solinst well mount field table strapped to well enclosure

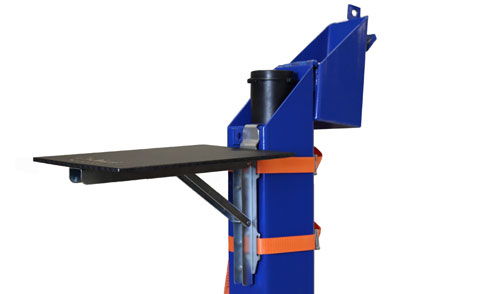

  3. Once secure, lift the tabletop up until it snaps into place.
    4. solinst well mount field table mounted onto well enclosure



Removal Instructions

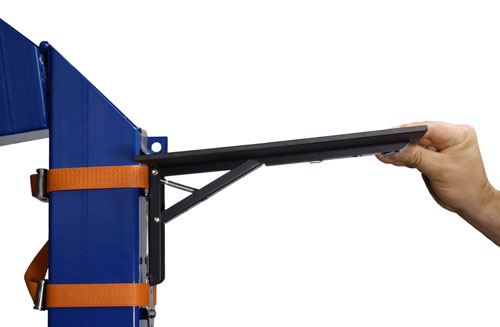

  1. Slightly lift the tabletop to release the hinge.
    2. slightly lift solinst well mount field table to disengage the table hinge lock

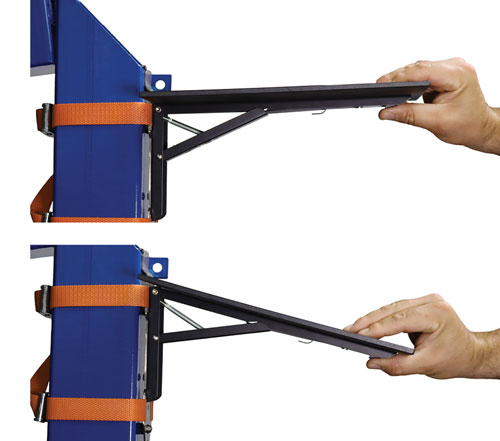

  2. Push the latch on the end of the underside of the tabletop and fold the tabletop down. Be careful not to pinch your fingers.
    3. gently lower the solinst well mount field table top surface carefully

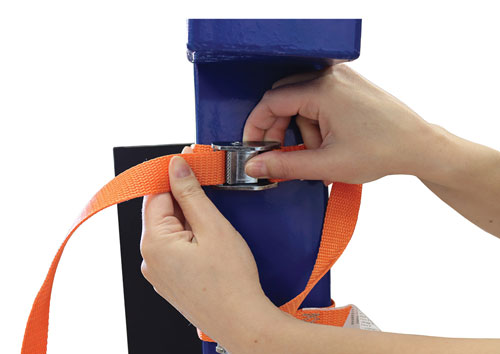

  3. To release the straps, push down on the lever of the buckle and pull the strap through.
    4. tighten buckle for solinst well mount field table
