410 Peristaltic Pumps
Solinst Peristaltic Pumps: High-Performance Groundwater & Vapor Sampling

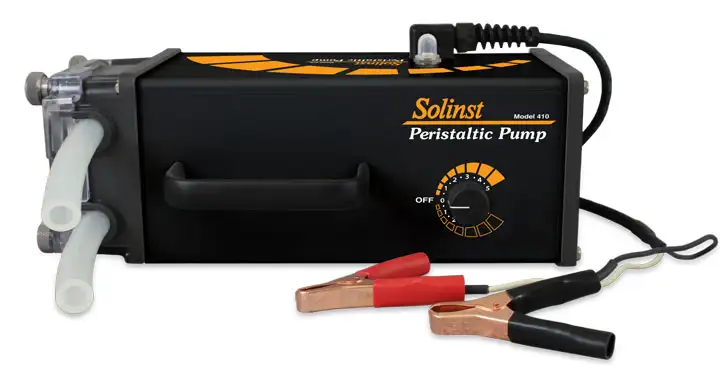

The Solinst Model 410 Peristaltic Pump is a robust, lightweight field pump designed for high-integrity vapor and groundwater sampling from shallow wells or surface water. The latest Mk5 version introduces enhanced automation and a more durable, water-resistant design to streamline your field data collection.
Why Choose the Model 410 Peristaltic Pump?
-
Automated Drawdown Control: Integrate with the Solinst 101D Water Level Drawdown Meter using the new DrawDown Link Cable to automatically stop and start pumping based on real-time water levels.
-
Field-Ready Durability: Featuring a water-resistant metal case with no vents or grates, the Model 410 is built to withstand harsh environments with minimal maintenance.
-
Contamination-Free Sampling: Fluid only contacts the tubing, which can be easily replaced between locations to eliminate cross-contamination risks and lengthy decontamination.
-
Clear Visibility: The transparent pump head allows for instant inspection of the silicone tubing before and during operation.
-
Versatile Flow Rates: Variable speed control provides sampling rates from 40 mL/min for low-flow applications up to 3.2 L/min for rapid purging.
Advanced Features and Applications
Automated Pumping with DrawDown Mode
By connecting the DrawDown Link Cable, the Peristaltic Pump can be synchronized with a 101D Water Level DrawDown Meter. This prevents well over-pumping by automatically pausing the pump once a specified drawdown level is reached, and restarting only after the water level has recovered.

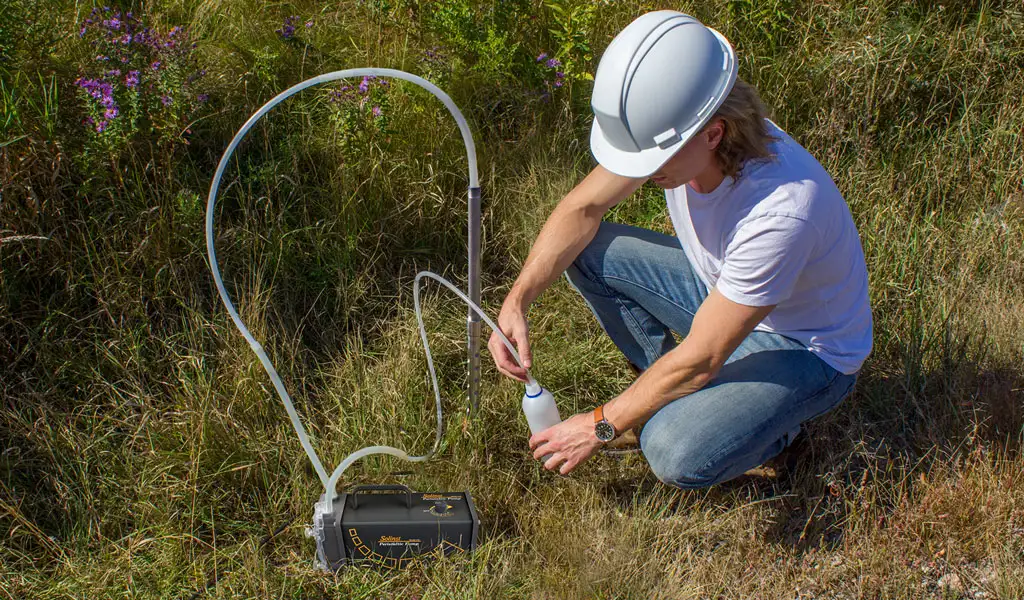

Ideal for Vapor and Liquid Sampling
The mechanical peristaltic operation creates a vacuum effective to depths of up to 10 m (33 ft) at sea level. This makes it a preferred choice for:
- Groundwater sampling from shallow wells.
- Surface water sampling from lakes and streams.
- Vapor sampling for environmental site assessments.
- Vacuum pumping or pressure delivery of liquids and gases.
Compact & Portable Power

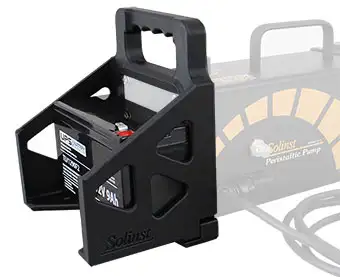

The pump operates on a standard 12V DC power supply. For remote sites, use the optional 12V Battery Holder for a completely portable, high-performance sampling solution.
Related Products
101D Water Level DrawDown Meter
The Solinst 101D Water Level DrawDown Meter delivers dual-functionality for environmental professionals, providing accurate depth-to-water measurements and precise drawdown monitoring. Featuring a robust, laser-marked tape and intuitive digital display, the 101D integrates with the Model 410 Mk5 Peristaltic Pump. This enables automated pump control, protecting against well over-pumping and ensuring high-integrity low-flow sampling.

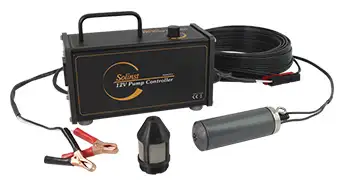

415 12V Submersible Pump
The Solinst 12V Submersible Pump provides an efficient means of purging and obtaining groundwater samples from 2" OD monitoring wells. The compact pump can sample from depths of 36.5 m (120 ft) below ground surface, and is easy to adjust the flow rates up to 13.5 L/min (3.6 US gpm) in shallower applications.

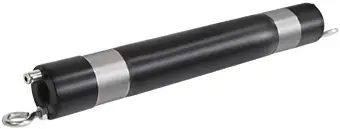

800M Mini Packer
The 800M Mini Packer is 1 ft in length and is designed to fit in nominal 2" OD monitoring wells to temporarily isolate discrete zones for groundwater monitoring and sampling applications – available as a single and straddle packer setup.
