8.1 Installing Wellhead Batteries

Note:

After retrieving the settings in Levelogger Software, If the Wellhead batteries have drained to 20% charge or lower, a warning message will appear to replace the batteries.

Each Wellhead uses four (4) 1.5V AA replaceable lithium batteries. To install the batteries, follow the steps below:

  1. Unscrew the top of the Wellhead to access the battery compartment.
  2. Carefully remove the battery holder from the compartment.
  3. Install the four batteries in the holder. Ensure proper polarity when placing the batteries, paying attention to the positive {+} and negative {-} symbols etched in the holder.
  4. Slide the battery holder back into the compartment. Ensure proper alignment; the spring contacts in the housing should be lined up with the protruding contacts on the bottom of the battery holder.
  5. Screw the top cap firmly back onto the Wellhead.
  6. After replacing the batteries, to reset the battery indicator in the Levelogger Software, use the Diagnostic Utility (see Section 10.6).

Note:

After replacing the batteries, to reset the battery indicator in the Levelogger Software, use the Diagnostic Utility (see Section 10.6).

solinst aquavent aquavent user guide installing wellhead batteries installing aquavent wellhead batteries replacing aquavent batteries replacing solinst aquavent batteries replace solinst aquavent batteries replace aquavent batteries image

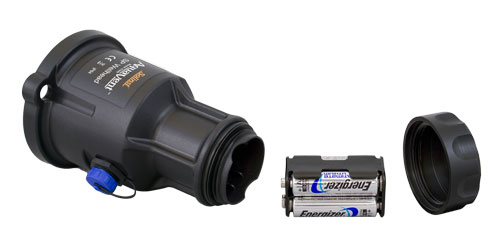

Figure 8-1 Installing Solinst AquaVent Wellhead Batteries



8.1.1 Wellhead Battery Life Estimates



AquaVent Sampling Rate Battery Life Estimate
8 readings per second 10 days
1 reading per second 3 months
1 reading per minute 8 years
