1.3.2.1 Vented Cable Connections

Note:

For diagnostic purposes, you may wish to install the end of the Vented Cable with the serial number, to the Wellhead connection at surface.

The Vented Cable ends terminate with female twist connections for the AquaVent logger and the Wellhead. Therefore, the Vented Cables are interchangeable (i.e. it does not matter which end is installed on the Wellhead or AquaVent logger).

The steps below show how to connect a Vented Cable to a Wellhead and AquaVent logger.

Note:

See Section 8.2 for installing the well cap base and the Support Hanger Bracket for securing the cable when deployed.



Connecting a Vented Cable to the Wellhead

solinst aquavent aquavent user guide vented cable connections aquavent cable connections solinst aquavent cable connections aquavent cable connectors solinst aquavent cable connectors connecting vented cable to wellhead connecting solinst aquavent cable to wellhead connecting solinst aquavent cable to wellcap image
solinst aquavent aquavent user guide vented cable connections aquavent cable connections solinst aquavent cable connections aquavent cable connectors solinst aquavent cable connectors connecting vented cable to wellhead connecting solinst aquavent cable to wellhead connecting solinst aquavent cable to wellcap image

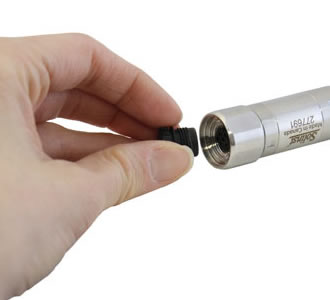

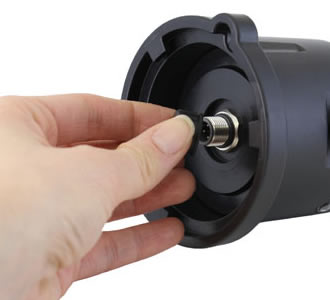

Remove the storage caps from the connectors on the Wellhead and Vented Cable.



Note:

Ensure you save all the storage caps for future use.



Note:

For diagnostic purposes, you may wish to install the end of the Vented Cable with the serial number, to the Wellhead connection at surface

solinst aquavent aquavent user guide vented cable connections aquavent cable connections solinst aquavent cable connections aquavent cable connectors solinst aquavent cable connectors connecting vented cable to wellhead connecting solinst aquavent cable to wellhead connecting solinst aquavent cable to wellcap image
solinst aquavent aquavent user guide vented cable connections aquavent cable connections solinst aquavent cable connections aquavent cable connectors solinst aquavent cable connectors connecting vented cable to wellhead connecting solinst aquavent cable to wellhead connecting solinst aquavent cable to wellcap image
solinst aquavent aquavent user guide vented cable connections aquavent cable connections solinst aquavent cable connections aquavent cable connectors solinst aquavent cable connectors connecting vented cable to wellhead connecting solinst aquavent cable to wellhead connecting solinst aquavent cable to wellcap image

solinst aquavent aquavent user guide vented cable connections aquavent cable connections solinst aquavent cable connections aquavent cable connectors solinst aquavent cable connectors connecting vented cable to wellhead connecting solinst aquavent cable to wellhead connecting solinst aquavent cable to wellcap image

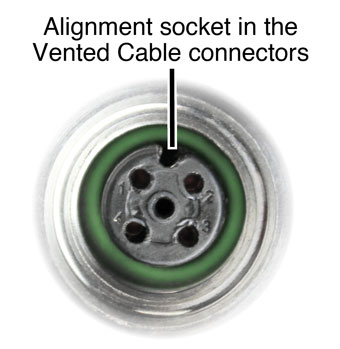

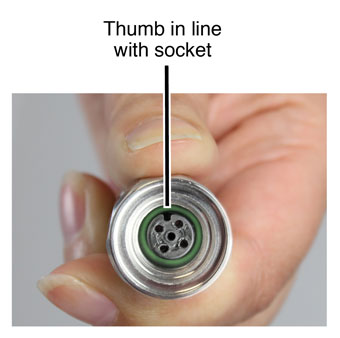

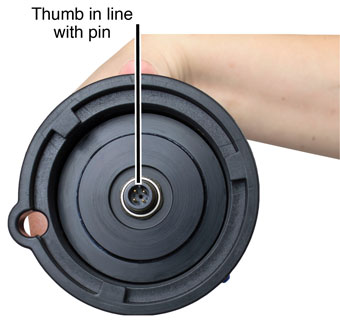

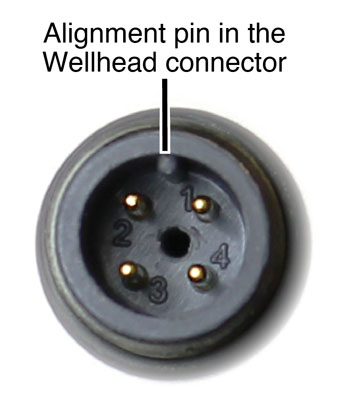

Line up the alignment socket in the Vented Cable connector with the alignment pin in the Wellhead connector.



solinst aquavent aquavent user guide vented cable connections aquavent cable connections solinst aquavent cable connections aquavent cable connectors solinst aquavent cable connectors connecting vented cable to wellhead connecting solinst aquavent cable to wellhead connecting solinst aquavent cable to wellcap image

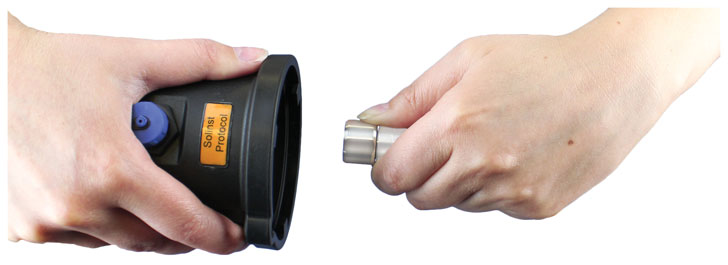

Carefully push the connectors together. Twist the cable connector slightly until you will feel a small click when the properly aligned connection is made.



Note:

Do not twist the Vented Cable or stainless steel cable connector body when connecting to a Wellhead or AquaVent logger. Only twist the stainless steel coupling.

solinst aquavent aquavent user guide vented cable connections aquavent cable connections solinst aquavent cable connections aquavent cable connectors solinst aquavent cable connectors connecting vented cable to wellhead connecting solinst aquavent cable to wellhead connecting solinst aquavent cable to wellcap image

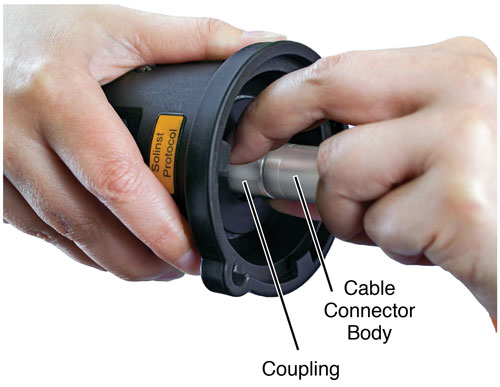

Tighten the stainless steel coupling while holding the stainless steel cable connector body still.
Tighten the stainless steel coupling until it seats. Do not twist the Vented Cable or Wellhead.



Figure 1-6 Connecting a Vented Cable to the Wellhead





Connecting a Vented Cable to the AquaVent Logger

Note:

Ensure you save all the storage caps for future use.

solinst aquavent aquavent user guide vented cable connections aquavent cable connections solinst aquavent cable connections aquavent cable connectors solinst aquavent cable connectors connecting vented cable to wellhead connecting solinst aquavent cable to wellhead connecting solinst aquavent cable to wellcap image

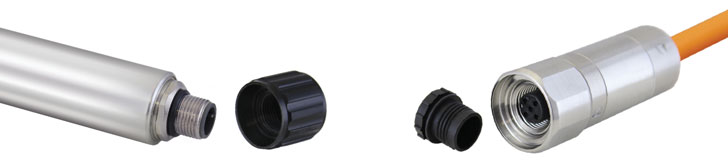

Remove the storage caps from the connectors on the AquaVent logger and other end of the Vented Cable.



solinst aquavent aquavent user guide vented cable connections aquavent cable connections solinst aquavent cable connections aquavent cable connectors solinst aquavent cable connectors connecting vented cable to wellhead connecting solinst aquavent cable to wellhead connecting solinst aquavent cable to wellcap image

Line up the alignment pin in the AquaVent logger connector with the alignment socket in the Vented Cable connector. Carefully push the connectors together. Twist the cable connector slightly; you will feel a small click when the properly aligned connection is made.



solinst aquavent aquavent user guide vented cable connections aquavent cable connections solinst aquavent cable connections aquavent cable connectors solinst aquavent cable connectors connecting vented cable to wellhead connecting solinst aquavent cable to wellhead connecting solinst aquavent cable to wellcap image

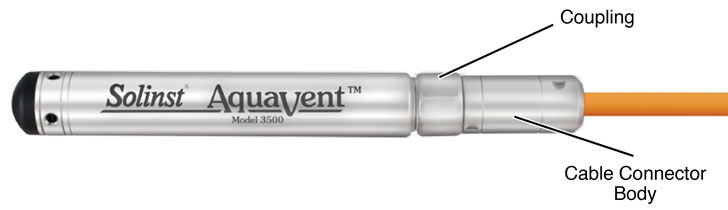

Tighten the stainless steel coupling while holding the stainless steel cable connector body still. Tighten the stainless steel coupling until it seats. Do not twist the Vented Cable or the logger.



Figure 1-7 Connecting a Vented Cable to the Solinst AquaVent Datalogger



Note:

Do not twist the Vented Cable or stainless steel cable connector body when connecting to a Wellhead or AquaVent logger. Only twist the stainless steel coupling.
