1.3 AquaVent System Components

The AquaVent requires the following components to complete a monitoring system:

Note:

The Wellhead Connector Cables are 15 ft (4.5 m) in length.

solinst aquavent aquavent user guide aquavent system components aquavent components aquavent parts solinst aquavent parts solinst aquavent system components complete aquavent system image

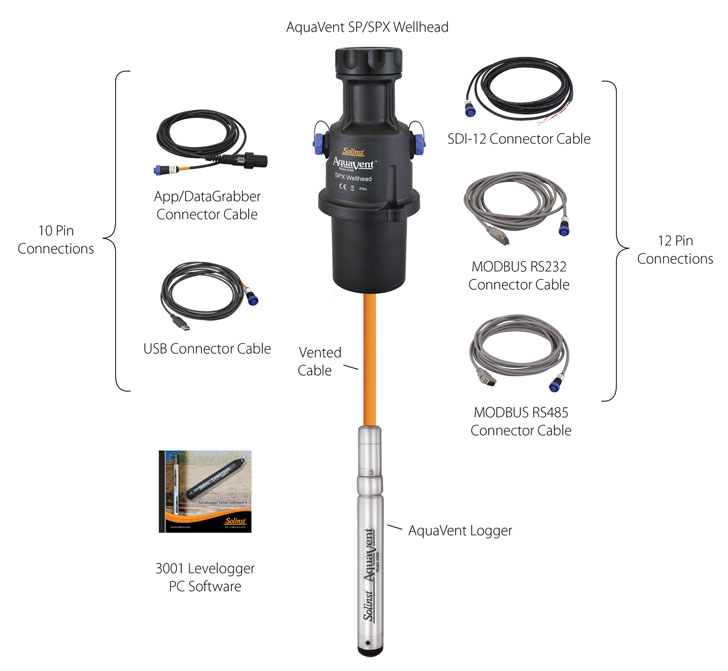

Figure 1-3 Complete AquaVent System



Note:

The Wellhead Connector Cables to be used with the SP Wellhead are identified with a orange band at the 10-pin connection. The 10-pin (Solinst Protocol) connection on the Wellhead is also labeled orange.
