Levelogger Deployment Options

Standard Cable Deployment

Leveloggers may be suspended on a stainless steel wireline or Kevlar® cord. This is a very inexpensive method of deployment, and if in a well, allows the Levelogger to be easily locked out of sight and inaccessible. Solinst offers stainless steel wireline assemblies and Kevlar cord assemblies in a variety of lengths.

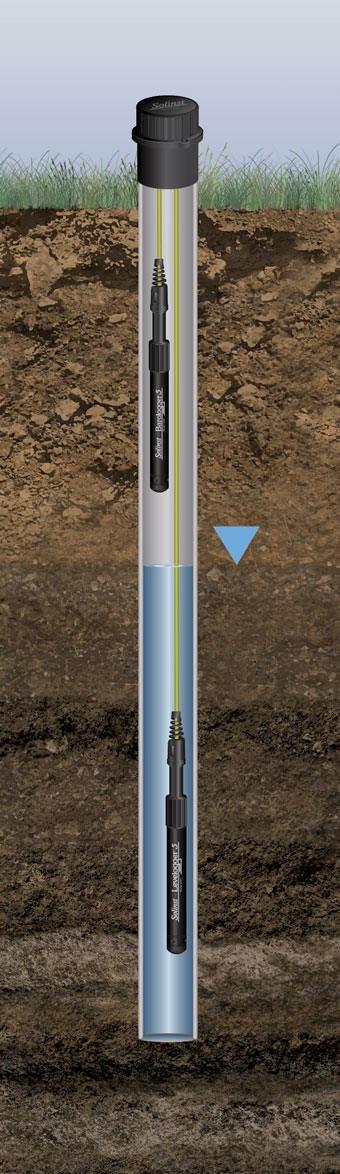

solinst direct read cable deployment with leveloggers: illustration in well with barologger and levelogger

Barologger 5 and Levelogger 5 nstalled in Well Using L5 Direct Read Cables

L5 Direct Read Cables

When it is desired to get realtime data and communicate with Leveloggers without removal from the water, they can be deployed using L5 Direct Read Cables. This allows viewing of data, downloading, and programming in the field using a portable PC, or Solinst Levelogger 5 App Interface. You can view and save data to an SRU, or just download data with a DataGrabber 5.

Leveloggers can be connected to an SDI-12 datalogger using the Solinst SDI-12 Interface Cable attached to a L5 Direct Read Cable.


Direct Read Cable Specifications

L5 Direct Read Cables are available for attachment to any Levelogger in lengths up to 1500 ft. The 3.175 mm dia. (1/8") coaxial cable has an outer polyurethane jacket for strength and durability. The stranded stainless steel conductor gives non-stretch accuracy.


get quote


® Kevlar is a registered trademark of DuPont Corp.
