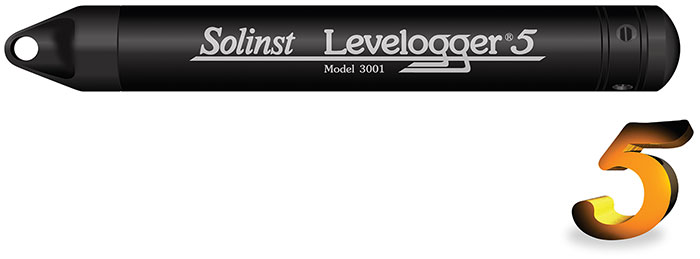

Solinst Levelogger 5
The Levelogger 5 records highly accurate groundwater and surface water level and temperature measurements. It combines a pressure sensor, temperature detector, 10-year lithium battery,
and datalogger, sealed within a 22 mm x 160 mm (7/8" x 6.3") stainless steel housing with a corrosion-resistant coating baked-on using polymerization technology.
The Levelogger 5 measures absolute pressure using a Hastelloy® pressure sensor, offering high resolution and an accuracy of 0.05% FS. Readings are stable in extreme pressure and temperature conditions. The Hastelloy sensor can withstand 2 times over-pressure without permanent damage. Combined with the durable coating inside and out, the Levelogger 5 has high corrosion and abrasion resistance in harsh environments.
The Levelogger 5 uses a Faraday cage design, which protects against power surges or electrical spikes caused by lightning. Its durable maintenance-free design, high accuracy and stability, make the Levelogger 5 the most reliable instrument for long-term, continuous water level recording.
Levelogger 5 Features
- Highly stable communication: single-eye optical interface—easier to clean, more scratch resistant
- Large memory: 150,000 sets of data
- Strong, robust design: double o-ring seals for increased leakage protection
- High thermistor sensitivity: accurate platinum RTD
- Superior protection in harsh environments: corrosion and abrasion resistant coating—inside and out
- Intuitive Levelogger Software: Diagnostic Utility for more proactive user "self-tests"

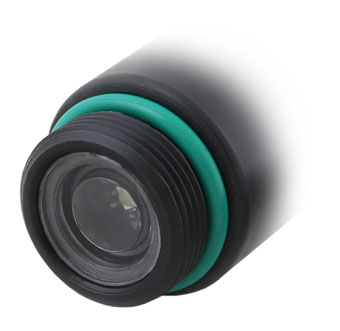

Single-eye optical interface

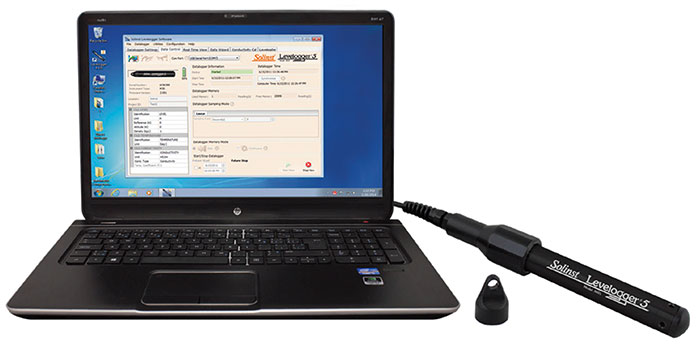

The Levelogger 5 features a smooth, single-eye optical interface, which allows for easy cleaning and more reliable, faster communication. Using a Solinst USB device, including the Field Reader 5 and Levelogger PC Software, programming and data downloading speeds are 57,600 bps.
Fast communication and downloading speeds with a high speed Field Reader 5
Flexible Communication
Levelogger Software is streamlined, making it easy to program dataloggers, and view and compensate data in the office or the field. Data compensation is made simple; multiple data files can be barometrically compensated at once.
The Levelogger 5 App Interface on your in-field Leveloggers creates a Bluetooth® connection between your dataloggers and the Solinst Levelogger App on your smart device. The Solinst Readout Unit (SRU) connects to your deployed Leveloggers to display and save real-time water level readings that are automatically barometrically compensated. Also an option, the DataGrabber 5 is a field-ready USB data transfer unit.
Remote monitoring options include the LevelSender 5, a simple and compact device that fits right in a 2" well, SolSat 5 Satellite Telemetry, STS Telemetry Systems, and the RRL Remote Radio Link. In addition, Levelogger 5 Series dataloggers are SDI-12 compatible.
