Connecting Laser Marked Replacement Tape to Reel
Tools and Materials Needed
- Replacement Laser Marked Tape Assembly, Includes:
- Jumper Cable (New Tape – 3 Pin to 2 Pin) (#110508)
- 3 Pin Molex Connector Housing
- Grommet
- Phillips or Robertson Screwdriver
- Wire Cutters
- Pliers (if required)
Note:
The Jumper Cable is only required if you are connecting the new Laser Tape to a Mk1 Model 101 Water Level Meter that previously used polyethylene tape (with red ft/m markings). The Molex Connector from the faceplate electronics will have a 2 pin connection.
Instructions
- Place the reel on a flat workbench with the faceplate up. Undo the three screws from the faceplate, and slowly remove it from the reel.
- For Meters with a Molex connection, disconnect the old Tape Molex Connector from the Faceplate Molex Connector.

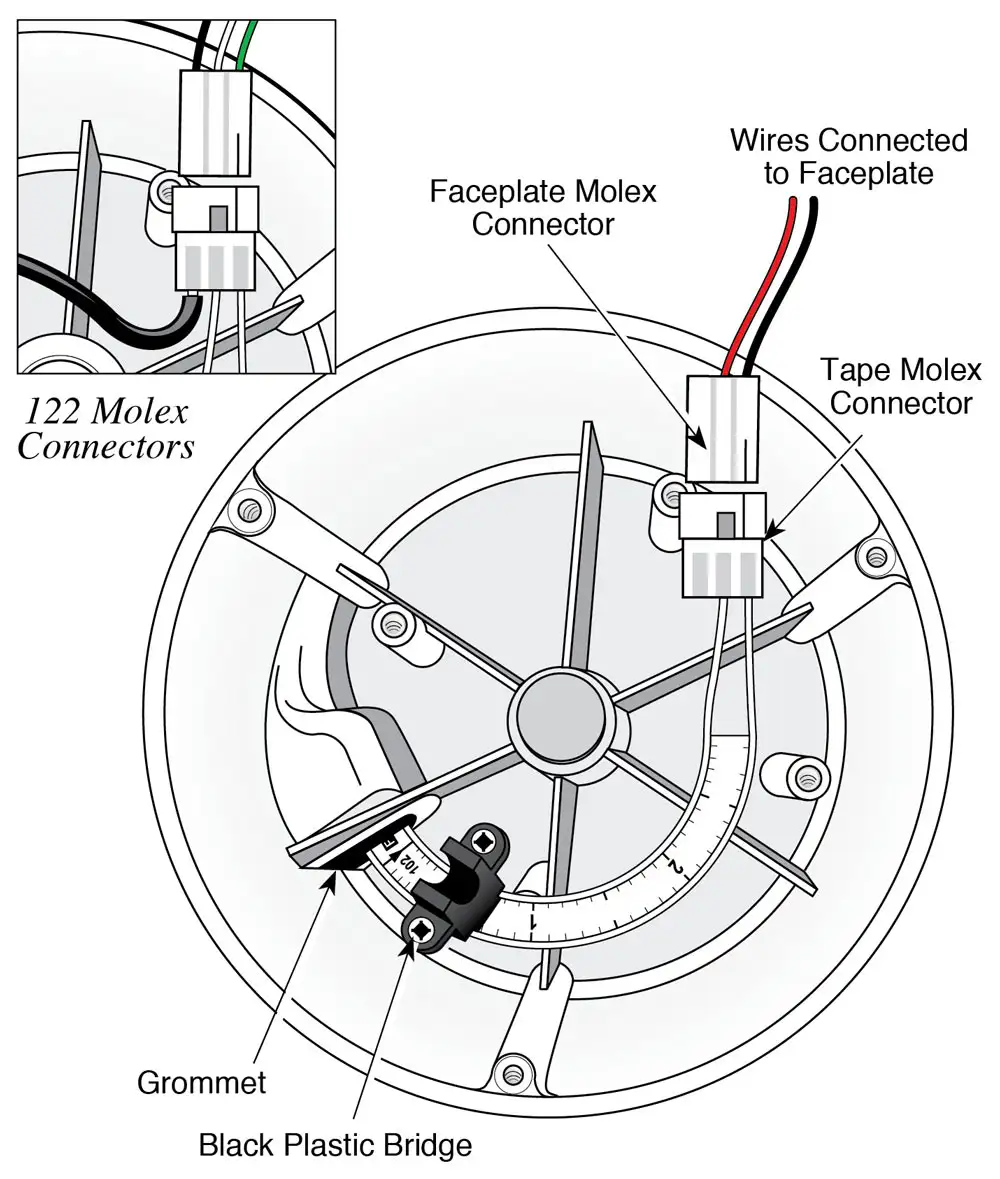

Inside View of Mk2 107/Mk1 101 P7 Reel Hub
3. For Meters with the tape leads connected to the circuit board, press down on the white terminals of the push-release fittings to remove the tape leads.

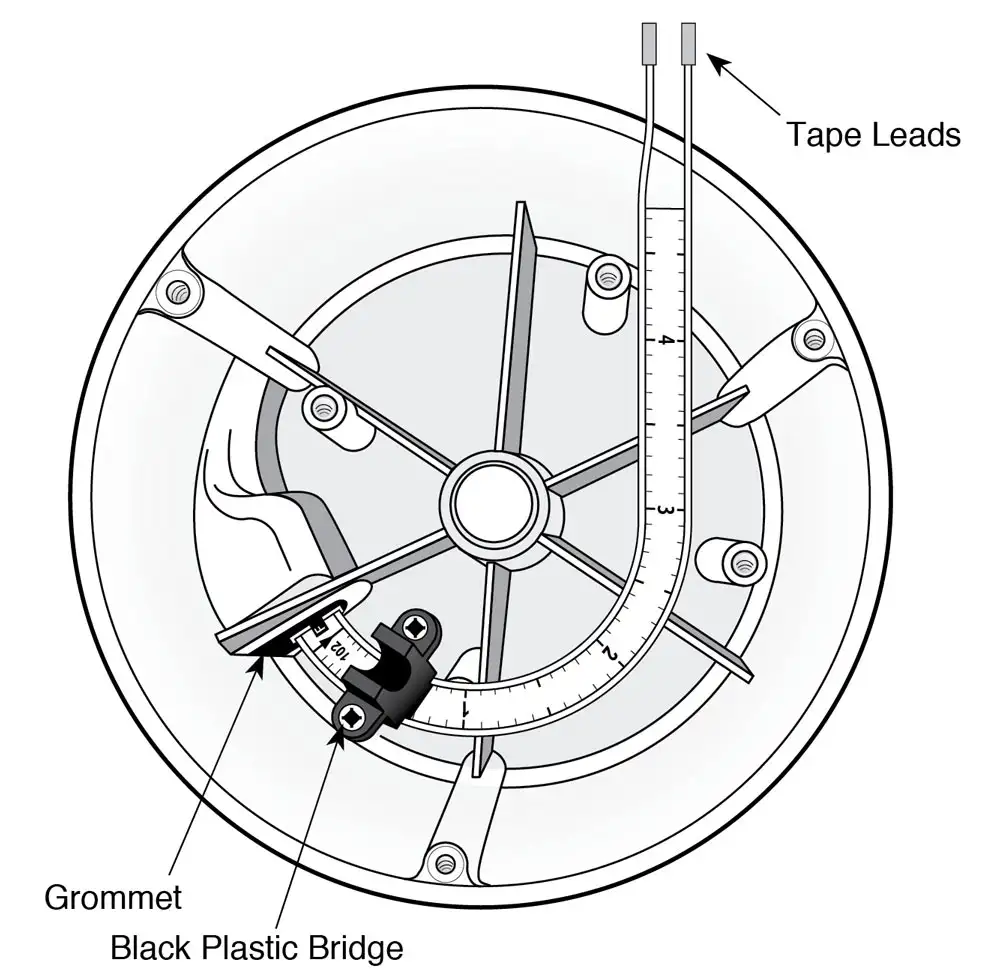

Inside View of Mk3 107/Mk2 101 P7/101D/201/105 Reel Hub
4. Undo the two screws from the black plastic bridge holding the tape inside the reel hub, and remove the top piece of the bridge.
5. For the Mk2 107, 122, and Mk1 101 P7, use the wire cutters to cut the old Tape Molex Connector from the old tape. Remove the ground wire from the 122 Tape Molex connector by pushing out the pin. Pull the old tape through the grommet and remove it from the reel.
6. For the Meters where the tape leads were connected to the circuit board, simply pull the old tape through the grommet and remove it from the reel.
Note:
The replacement tape comes with a new grommet. The old grommet may be replaced with the new one, or left in if not damaged.
7. Feed the new laser tape through the grommet into the reel hub.

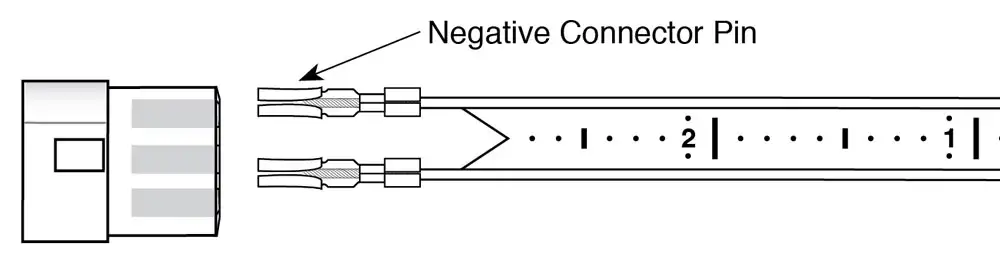

8. For the Meters with a Molex connection, by hand, insert the connector pins into the new Tape Molex Connector housing. The negative connector pin is inserted into the terminal on the pointed side of the Tape Molex Connector housing and the positive pin into the middle terminal. The negative pin is above the numbers (or “P” – see note below) on the tape (see diagram below). The third terminal is left open for the 107 and 101 P7, the ground wire is inserted for the 122.
Note:

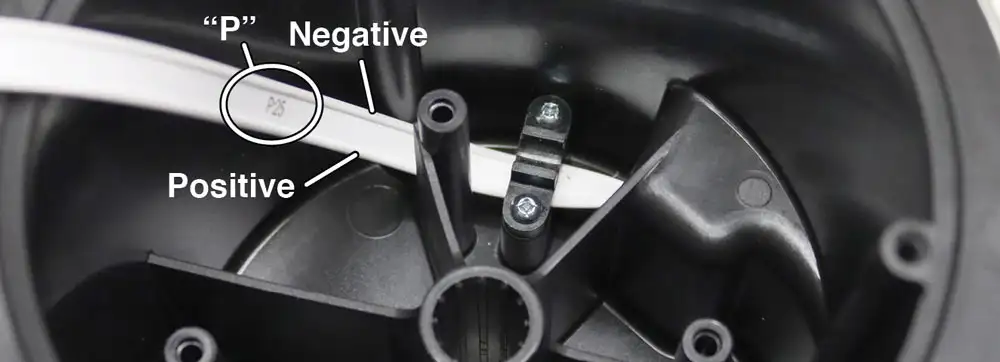

There is a “P” etched on the tape to help denote the proper orientation of the tape – top (negative) and bottom (positive) leads.

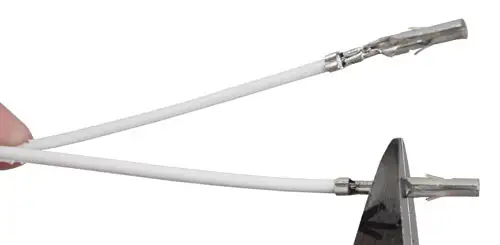

9. For the Meters where tape leads connect to the circuit board, cut the pins on the tape leads at the point shown in the photo below. Use pliers to flatten the pins against the tape leads, so they fit into the terminals on the circuit board (see Step 12).
10. Position the tape inside the reel hub with black plastic bridge over top and refasten the two screws to secure the tape to the reel.
11. For the Meters with a Molex connection, connect the Tape Molex Connector to the Faceplate Molex Connector.
Note:

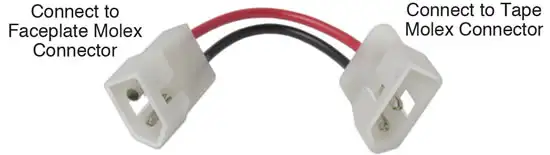

If you are connecting the Laser Tape to an older style Model 101 that previously used polyethylene tape, you will need to use the Jumper Cable. Attach the 3 pin connection to the Tape Molex Connector, and the 2 pin connection to the Faceplate Molex Connector.

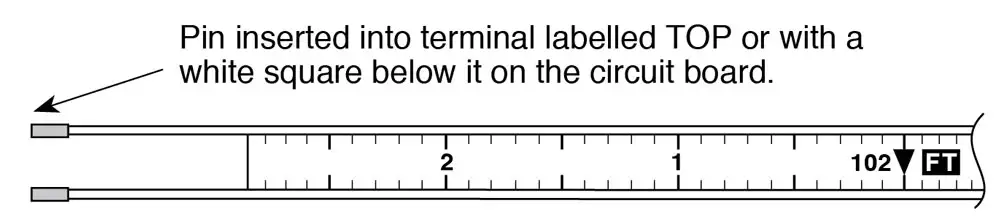

12. For the Meters where tape leads connect to the circuit board, press down on the white terminals on the circuit board and insert the tape leads. Release the terminals and the leads should be secured. For the Mk3 107 and 201, the lead on the top the tape is inserted into the terminal labelled TOP on the circuit board. For the Mk2 101 P7, 101D and 105, the negative lead on the top of the tape is inserted into the terminal with a square etched below it on the circuit board. See following images.

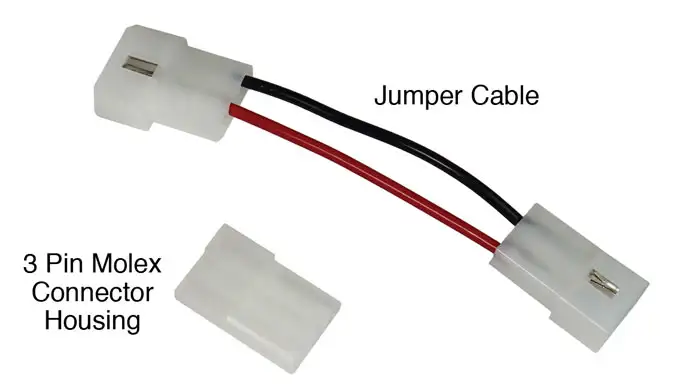

Jumper Cable (New Tape – 3 Pin to 2 Pin) (#110508)
Mk3 107/201 Tape Connection
Mk2 101 P7 Tape Connection
13. Attach the probe to the tape seal (existing or replacement probe). See separate probe replacement instructions.
14. 101 P7/101D/107/201: With the probe in a glass of tap water, turn the Meter ‘ON’. If the buzzer or light do not activate, or the Model 107/201 LCD does not show temperature (or conductivity for the 107), check the probe and tape connections. (Test 101D in Water Level Mode).
122: With the Probe in a glass of tap water and product, turn the Interface Meter to the ‘ON’ position. A steady tone and light indicates a product, while an intermittent tone indicates water. If the buzzer or light do not activate, check the probe and tape connections.
105: Push the plunger in at the bottom of the probe. If the buzzer or light do not activate, check the probe and tape connections.
15. Replace the faceplate on the reel and re-secure the three screws.
16. Slowly wind the tape onto the reel, holding to ensure no slack.

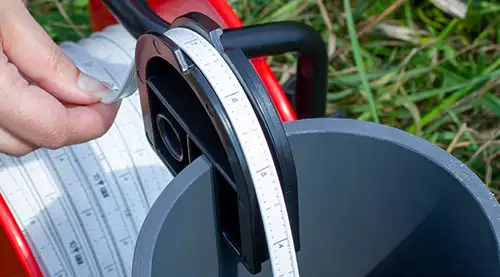

Tape Guide/Datum
A tape guide is provided with each Meter to prevent damage to the tape from rough edges. It also ensures easy, consistent measurements regardless of who takes readings. It can also provide support for hanging small reels on the casing.
Other Options
Carrying Case: To help maximize the life of the Meter, optional small and medium padded
nylon carrying cases are available. Their design has a convenient shoulder strap, zippered top
and front pocket, and a grommet in the base to prevent moisture build-up.
Replacement Parts: Replacement probes, tapes, faceplates and other spare parts are available.
