Model 601 Standpipe Piezometers

solinst piezometers water level monitoring permeability measurements construction control de-watering drainage slope stability investigations metals monitoring groundwater stand pipe piezometers standpipe piezometers image

The Solinst Model 601 Standpipe Piezometer is designed to be placed within a drilled hole to provide a filtered inlet point. The pointed PVC tip is also suitable for pushing into very loose sands at the base of a borehole, a stream, or into very loose tailings pond sediments.

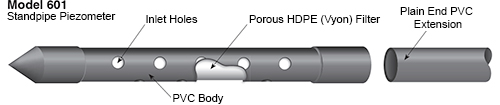

The 601 is excellent for metals sampling, as it is composed of a preformed Vyon tube set inside a perforated PVC piezometer tip. The Model 601 is well suited for water level monitoring, permeability measurements, construction control, de-watering drainage operations, and slope stability investigations.

The 601 Standpipe Piezometer tip connects to the surface with 3/4” ID PVC riser pipe using slip-fit couplings. Reducer couplings can also be used to connect to other sizes of riser pipe or casing. The standard 601 Standpipe Piezometer tip lengths available are: 6”, 1 ft, 2 ft and 3 ft (15 cm, 30 cm, 60 cm and 90 cm). Learn how to use a Standpipe Piezometer here.

Solinst also offers the Model 615 stainless steel Drive-Point Piezometer, which is designed to be pushed into the soil below the bottom of a borehole. They can also be driven directly into the ground from the surface. (See Drive Point Piezometers for more information.)



Filter Specifications

solinst piezometers water level monitoring permeability measurements construction control de-watering drainage slope stability investigations metals monitoring groundwater stand pipe piezometers standpipe piezometers image



Applications



Advantages
